Protection of pipes warm floor™
Our intelligent systems for protecting pipes against frost, and their temperature maintaining, are designed for homes as well as industrial facilities. We have got an optimal solution for all cases, even including explosive environments.
Advantages of pipe protection by self-regulating (intelligent) heating cable:
- Water will run in the pipes even at temperatures below 0 °C.
- The pipes are protected against damage, thus preventing repair costs or costly outages in production.
- Reliability is tested by many years of experience.
- Intelligent cable is self-regulating, therefore its operation is cost-effective.
- Easy and quick installation provides for cable shortening exactly according to your need.
- It can be installed in as well as on the pipe.
Simple design:
You will easily find everything needed in the table of heat losses in the pipes. According to the pipe diameter, insulation thickness and maximum permissible ambient temperature below 0 °C, you can read the heat loss of the pipes in W/m. Based on the heat loss, you can select a suitable cable with necessary output in W/m.
Documents to download:
- Leaflet - Protection systems [pdf, 1.24 MB]
An ideal thermostat designed for pipeline protection:
Benefits of the thermostat:
- An ideal thermostat for protection of pipes
- Designed for installation on a standard DIN rail
- Practical and simple control
Technical data:
- l. Max 16 A, AC 230 V
- +1 to +75 °C
- Precision +/- 0.5 °C
- NTC sensor delivered with the thermostat
Innovative structure of heating cables of the brand warm floor™
In our products, we use only top quality materials tested in a long period of practice.
 |

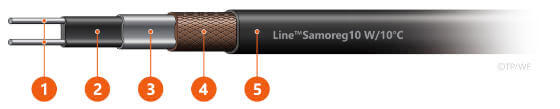

Line™ Samoreg (10 W/10°C- P/J), up to 65°C. Structure of the self-regulating cable for protection of pipes:
|
 |
